Z-Bar®

The original Z-Bar® was Koncept's flagship product in 2004 and has enjoyed tremendous global success. Gen 4 is the fourth revamp of that design. Offering maximum reach and flexibility, it is available in 3 sizes: Z-Bar® Gen 4, Z-Bar® Slim Gen 4 and Z-Bar® Mini Gen 4.

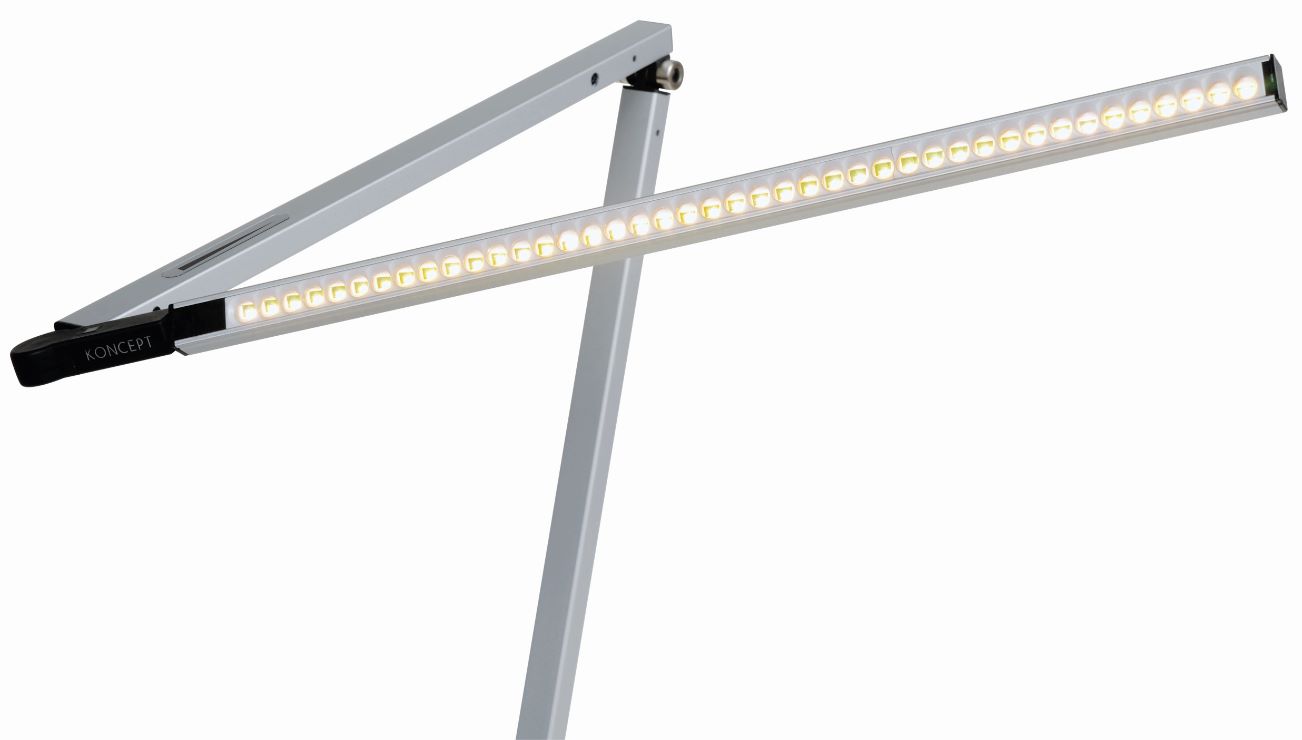

An improved joint design allows for a cleaner profile and greater articulation, while the fully adjustable LED head can spin in its socket, sweep from side to side and rotate at the end of the arm to cast light in any desired direction. Improved optics avoid multiple, harsh shadows — instead casting soft, even shadows across the work surface.

With fully dimmable control gear, a finger slide gives the user ultimate flexibility to select a specific lamp brightness – slide your finger along the touchstrip to dim gradually, or touch anywhere on the strip to jump directly to any brightness, including off.

Gen 4 retains the beloved characteristics of the original: a minimalist profile, high flexibility and compatibility with various desk and wall mounts. Other mounting options include a desk clamp, wall mount, slatwall mount and through table mount. Compatible with optional occupancy sensor.

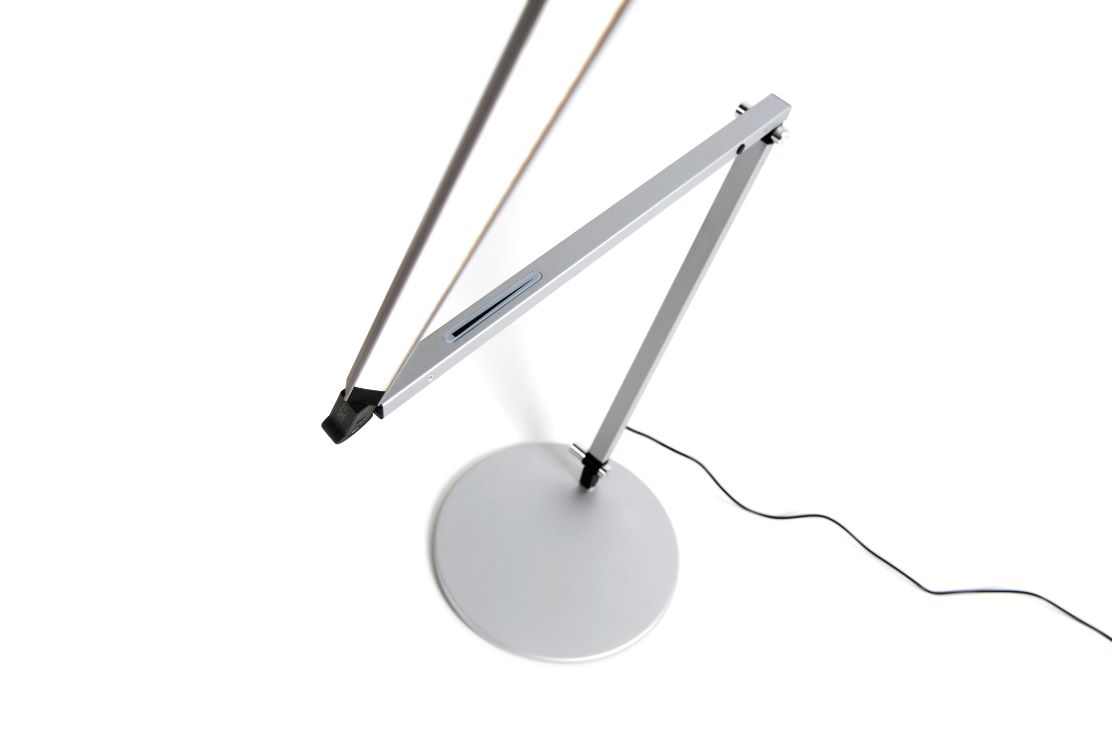

Supplied as standard with weighted base. Available in Black, Silver and White finishes.

Specifications

• LED Rated Lifespan: 50000 hours
• Colour Temperature (Daylight): 5,000 K
• Colour Temperature (Warm): 3,500 K
• Colour Rendering Index (CRI): 85
• Dimmer: Built-in touchstrip
• Brightness Adjustability: Continuous
• Colour Finish: Metallic Black, Silver, White
• Material: Aluminium/Plastic
• Cord Colour: Black
• Cord Length: 9’
• Energy Consumption: 10.5 watts
• Number of LEDs: 42 LEDs
• Max. Brightness (15” above desk): 224 fc
